PROPAL 3 Automated Shuttle
High-density storage using a motorised shuttle for ultra-deep pallet aisles. The shuttle moves along rails to load and unload pallets automatically, removing the need for forklifts inside storage lanes. Compatible with all PROPAL 3 rack dimensions. Remote-controlled or fully automated operation.
- Capacity up to 18 tons per frame
- Load up to 6,000 kg per level
- Loading height up to 10 metres
- Adjustment pitch 50 mm
- 10 depths (600 to 1,500 mm), 28 heights (1,800 to 10,000 mm)
- Beam lengths 300 to 4,900 mm
- Designed per EN 15512 & EN 15620 standards

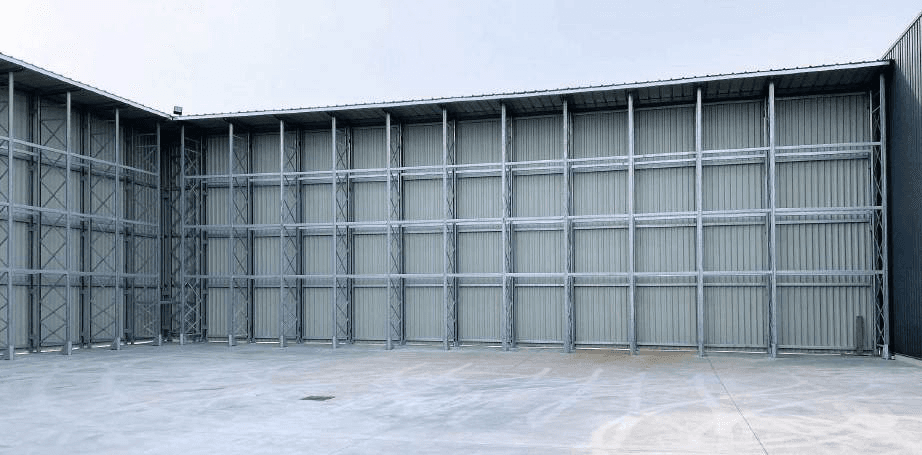

- Indoor and outdoor use with canopy/cladding
All sizes and specifications shown below. Our experts will help you choose the right configuration and provide competitive pricing for your project.
Interested in PROPAL 3 Automated Shuttle?
Our experts will help you choose the right sizes, configurations and accessories. Get a personalised quote.
Technical Specifications
| Product Range | PROPAL 3 |
| Configuration | Automated Shuttle System |
| Operation | Remote-controlled or fully automated |
| Pallet Depth | Very deep aisles for maximum densification |
| Frame Capacity | Up to 18 tonnes per frame |
| Load per Level | Up to 6,000 kg |
| Loading Height | Up to 10 metres |
| Compatibility | All PROPAL 3 rack dimensions |
| Adjustment Pitch | 50 mm |
| Standards | Eurocode 3, EN 15512, FEM 10.2.02 |
