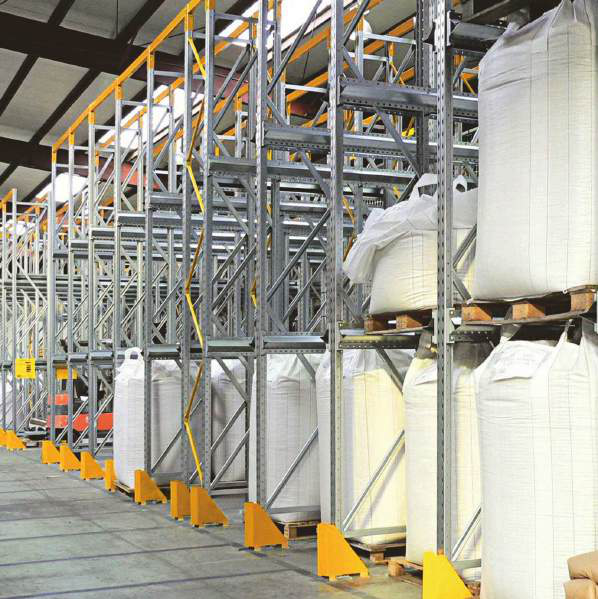

PROPAL 3 Drive-In / Drive-Through

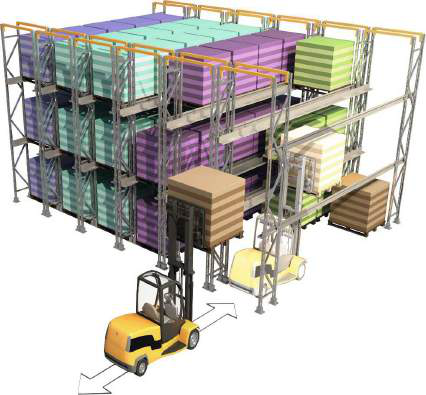

Store pallets in large quantities with limited SKUs. Saves space by removing aisles. Drive-In (LIFO) or Drive-Through (FIFO) configurations. Bracing tower or corner bracket stabilisation.
- Capacity up to 18 tons per frame
- Load up to 6,000 kg per level
- Loading height up to 10 metres
- Adjustment pitch 50 mm
- 10 depths (600 to 1,500 mm), 28 heights (1,800 to 10,000 mm)
- Beam lengths 300 to 4,900 mm
- Designed per EN 15512 & EN 15620 standards
- Indoor and outdoor use with canopy/cladding
Published capacities are configuration dependent. The final design, loads, dimensions, accessories and price must be confirmed for your installation.
Technical information
Use these catalogue details as a starting point for your discussion with our storage team.
Read the complete brochure| Product Range | PROPAL 3 |
|---|---|
| Type | Accumulation Racking (Drive-In / Drive-Through) |

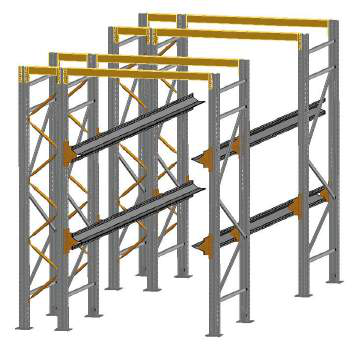

| Drive-In | LIFO — goods in/out on the same side |

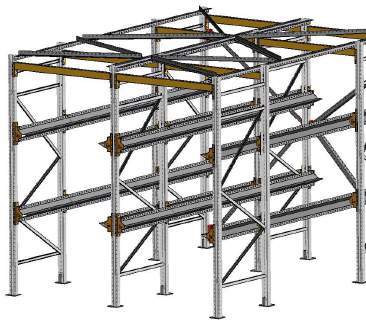

| Drive-Through | FIFO — handling from either side, first in/first out |
| Bracing Tower | Stabilises without restricting aisle depth. 1 tower per 11 aisles. |
| Corner Brackets | Stabilises without losing storage surface on ground. |
| Rail Bracket 50 mm | For overhanging pallet up to 50 mm |
| Rail Bracket 100 mm | For overhanging pallet up to 100 mm |
| Rail Bracket 200 mm | For overhanging pallet up to 200 mm |
| Railing Capacity | Thickness 2 mm, galvanised, max reach 2,000 mm |
| Standards | EN 15512, EN 15620, FEM 10.2.07 |
