PROPAL 3 Pushback Carrier
LIFO pushback accumulation storage. Operator doesn't enter the unit. Up to 9 pallets deep, loads up to 1,200 kg per pallet. Reduces risks of collision and falling products.
- Capacity up to 18 tons per frame
- Load up to 6,000 kg per level
- Loading height up to 10 metres
- Adjustment pitch 50 mm
- 10 depths (600 to 1,500 mm), 28 heights (1,800 to 10,000 mm)
- Beam lengths 300 to 4,900 mm
- Designed per EN 15512 & EN 15620 standards
- Indoor and outdoor use with canopy/cladding
Published capacities are configuration dependent. The final design, loads, dimensions, accessories and price must be confirmed for your installation.
Technical information
Use these catalogue details as a starting point for your discussion with our storage team.
Read the complete brochure| Product Range | PROPAL 3 |
|---|---|
| Type | Pushback Carrier (LIFO) |
| Max Depth | 9 pallets |
| Max Pallet Load | 1,200 kg per pallet |
| Operation | Gravity return — operator never enters the unit |

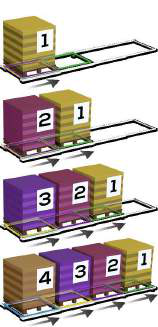

| Loading | Pallets dropped at aisle entrance on mobile frame, moved by pushback |

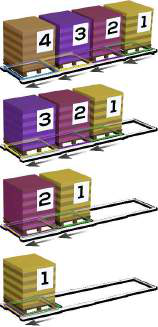

| Unloading | First pallet removed, following pallets advance by gravity |
| Benefits | Saves space, saves time, less damage to unit |
Applications
More in PROPAL 3
PROPAL 3 Automated Shuttle
High-density storage using a motorised shuttle for ultra-deep pallet aisles. The shuttle moves along rails to load and unload pallets automatically, removing the need for forklifts inside storage lanes. Compatible with all PROPAL 3 rack dimensions. Remote-controlled or fully automated operation.
Details & specifications
PROPAL 3 Canopy & Cladding
Protective canopy and cladding system for PROPAL 3 outdoor racking. Includes rear cladding, side cladding, rainwater evacuation and roof finishing angles. Protects stored goods from rain, sun and debris in outdoor yards and materials storage areas.
Details & specifications
PROPAL 3 Drive-In / Drive-Through
Store pallets in large quantities with limited SKUs. Saves space by removing aisles. Drive-In (LIFO) or Drive-Through (FIFO) configurations. Bracing tower or corner bracket stabilisation.
Details & specifications
PROPAL 3 Dynamic Covering
Dynamic covering placed on standard PROPAL 3 beams converts a static pallet level into a dynamic FIFO solution for boxes. Boxes are loaded from the rear and picked from the front, ensuring stock rotation. Ideal for combining pallet storage with box-level picking.
Details & specifications
PROPAL 3 Outdoor with Canopy
Outdoor pallet racking with canopy, rear and side cladding for weather protection. Rainwater evacuation system. Ideal for lumber yards, materials yards, and outdoor storage.
Details & specifications
PROPAL 3 Pallet Drawer
The pallet drawer system provides access on three sides, making ground-level order preparation easier and reducing posture constraints. Ideal for picking operations where ergonomic access to palletised goods is critical.
Details & specifications
PROPAL 3 Static Pallet Racking
Standard pallet racking for heavy loads. HEL steel construction. Available with safety accessories including nets, pallet stops, corner protections and loading instructions.
Details & specificationsLet’s check the fit for your project.
Tell us about your stored goods, space and preferred configuration. We’ll help define the next step.
