MODUL+ Sliding Doors
Space-saving sliding doors. Single or double. Do not obstruct traffic aisles. Guide rail system. Lock and latch included.
- Indoor or outdoor use (galvanised version)
- Height up to 6,000 mm
- Standard colours: Blue RAL 5019, Grey RAL 7016
- Fully adaptable modular system
- Security brackets — cannot be dismantled from outside
- Hinged or sliding doors
- Custom installation service available
All sizes and specifications shown below. Our experts will help you choose the right configuration and provide competitive pricing for your project.
Interested in MODUL+ Sliding Doors?
Our experts will help you choose the right sizes, configurations and accessories. Get a personalised quote.
Technical Specifications
| Product Range | MODUL+ |
| Type | Sliding Doors |
| Single Door Heights | 2,200 to 3,000 mm |
| Single Door Sizes | 2435 mm (clear 1020), 3035 mm (clear 1320), 4715 mm (clear 2050), 5915 mm (clear 2650) |
| Double Door Heights | 2,200 to 3,000 mm |
| Double Door Sizes | 4715 mm (clear 2050), 5915 mm (clear 2650) |
| Posts | 3 posts (single) or 2 posts (double), 35 x 30 mm |
| Rail System | End stop, guide rail top and bottom |
| Lock | Lock and latch included |
| Direction | Slides left or right per your requirements |
| Cladding Options | Wire mesh, sheet metal, half sheet/half mesh, 5S transparent |

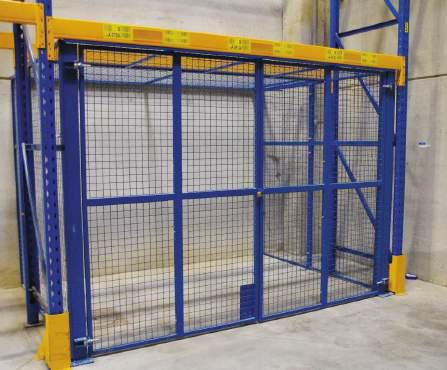

| For Racking | Special hinged and sliding doors for pallet rack bay access |
Load Capacity (kg per shelf)
Standard
| Type | Height | Clear Width | CTC Distance |
|---|---|---|---|
| Racking Hinged Door | 2200–3000 | 2695 / 3295 | 2795 / 3395 |
| Racking Sliding Door | 2200–3000 | 2695 / 3295 | 2×2795 / 2×3395 |
All loads evenly distributed, in kg. Values from official technical documentation. Contact us for project-specific load calculations.
