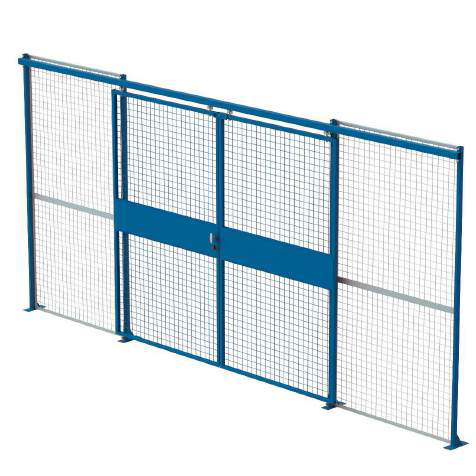

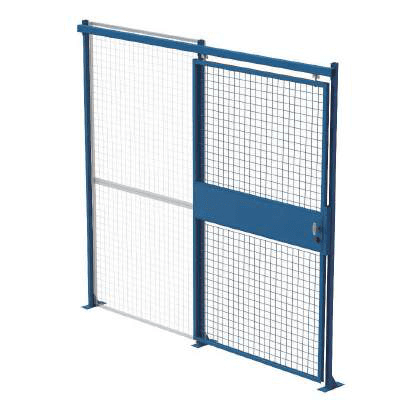

MODUL+ Doors for Racking
Independent door system designed to secure racking bays without modifying the rack structure. No top crossbars needed, allowing easy forklift access to stored products. Can secure one or more bays and is suitable for narrow aisle configurations.
- Indoor or outdoor use (galvanised version)
- Height up to 6,000 mm
- Standard colours: Blue RAL 5019, Grey RAL 7016
- Fully adaptable modular system
- Security brackets — cannot be dismantled from outside
- Hinged or sliding doors
- Custom installation service available
Published capacities are configuration dependent. The final design, loads, dimensions, accessories and price must be confirmed for your installation.
Technical information
Use these catalogue details as a starting point for your discussion with our storage team.
Read the complete brochure| Product Range | MODUL+ |
|---|---|
| Configuration | Doors for Racking |
| Installation | Independent of racking structure |
| Top Crossbars | Not required — full forklift access |
| Bay Coverage | One or more bays per door |
| Aisle Compatibility | Narrow aisle suitable |
| Structure | Horizontal crosstie for rigidity |
| Height | Up to 6,000 mm |
| Colours | Blue RAL 5019, grey RAL 7016 (others on request) |
Applications
More in MODUL+
MODUL+ Drop Counter & Partitioning Options
Versatile partitioning add-ons including drop counter panels for passing small items without opening the main door, lockable steel shelves, and various closing options. Enhances functionality of any MODUL+ installation.
Details & specifications

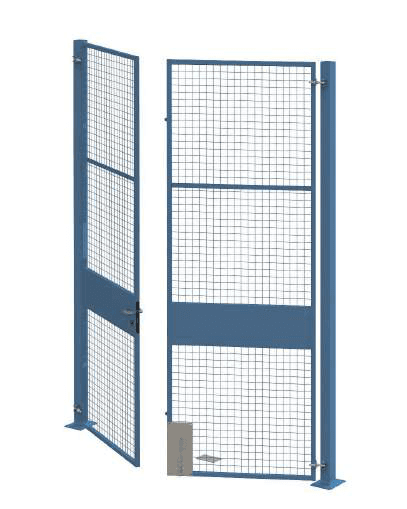

MODUL+ Hinged Doors
Single and double hinged doors. Choice of cladding. Aluminium lever handle, lock with 3 keys. Door opens inwards or outwards. Adjustable for uneven floors.
Details & specifications

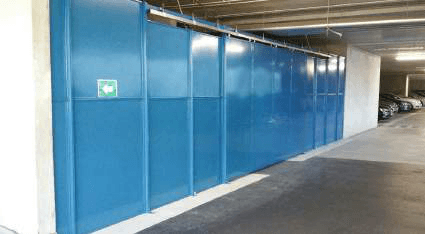

MODUL+ Outdoor Partitioning
Hot-dip galvanised MODUL+ partitioning designed for outdoor and damp environments. Delimits outdoor storage areas, shelters and yards. Withstands weather exposure while maintaining full modularity and security features.
Details & specifications

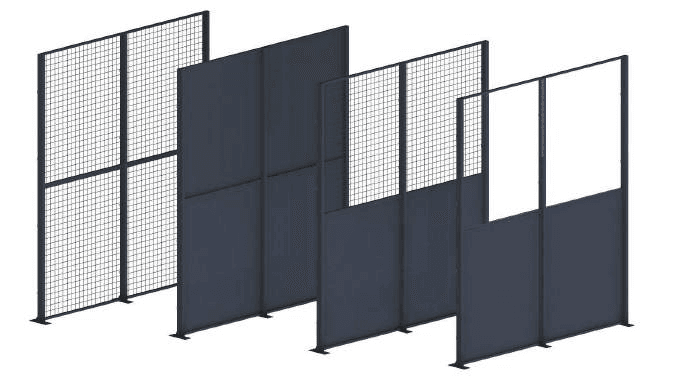

MODUL+ Panels
Frame made of 20x20 mm square tubes with welded wire mesh 50x50 mm. 7 heights (1,800–3,000 mm), 4 widths (800–1,500 mm). Wire mesh, sheet metal, half mesh, or 5S transparent cladding.
Details & specifications

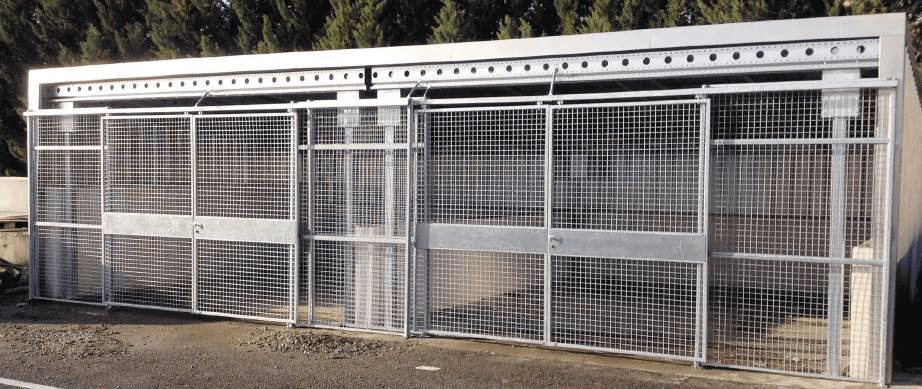

MODUL+ Sensitive Goods Protection
Secure storage enclosures for high-value, hazardous or sensitive goods. Features wire mesh roof options, chemical-compatible retention trays, and integrated pallet racking bays. Ideal for pharmaceuticals, electronics, chemicals and restricted inventory.
Details & specificationsMODUL+ Sliding Doors
Space-saving sliding doors. Single or double. Do not obstruct traffic aisles. Guide rail system. Lock and latch included.
Details & specificationsLet’s check the fit for your project.
Tell us about your stored goods, space and preferred configuration. We’ll help define the next step.
