MODUL+ Panels - 1
Panels · MODUL+

MODUL+ Panels

Frame made of 20x20 mm square tubes with welded wire mesh 50x50 mm. 7 heights (1,800–3,000 mm), 4 widths (800–1,500 mm). Wire mesh, sheet metal, half mesh, or 5S transparent cladding.

  • Indoor or outdoor use (galvanised version)
  • Height up to 6,000 mm
  • Standard colours: Blue RAL 5019, Grey RAL 7016
  • Fully adaptable modular system
  • Security brackets — cannot be dismantled from outside
  • Hinged or sliding doors
  • Custom installation service available
Plan this configuration Product brochure
Configured and priced for your project.

Published capacities are configuration dependent. The final design, loads, dimensions, accessories and price must be confirmed for your installation.

Product reference

Technical information

Use these catalogue details as a starting point for your discussion with our storage team.

Read the complete brochure
MODUL+ Panels technical specifications
Product RangeMODUL+
TypeWire Mesh Panels
Frame20x20 mm square tubes
MeshWelded wire mesh 50x50 mm / 3 mm thick
Steel Thickness15/10th
Heights1,800, 2,000, 2,200, 2,400, 2,600, 2,800, 3,000 mm
Widths800, 1,000, 1,200, 1,500 mm
Cladding OptionsWire mesh, Sheet metal, Half sheet/half mesh, 5S (transparent synthetic glass)
Post TypesRectangular 35x30 mm (space-saving, footplate 200x70 mm) or Round Ø55 mm (any angle, footplate 100x100 mm)
AssemblyInside bracket system — impossible to dismantle from outside
Floor GapAdjustable for uneven floors

Accessories & Options

Drop Counter PanelPass small items without opening main door. Lockable steel shelf. W 1,130 × H 520 mm.
Wire-Mesh RoofSecure overhead closure for product storage areas.
Load StrutReinforces stability and rigidity on uneven floors.
Finishing KitAdjust partition length to fit the space available.
3D KitAdd extra space to the original cladding configuration.
Handle with KeypadElectronic access control for secured areas.
Crash BarEmergency exit push bar.
Door CloserAutomatic door closing mechanism.
Cylinder Locks with Master KeyIdentical or master-keyed cylinder locks.

Applications

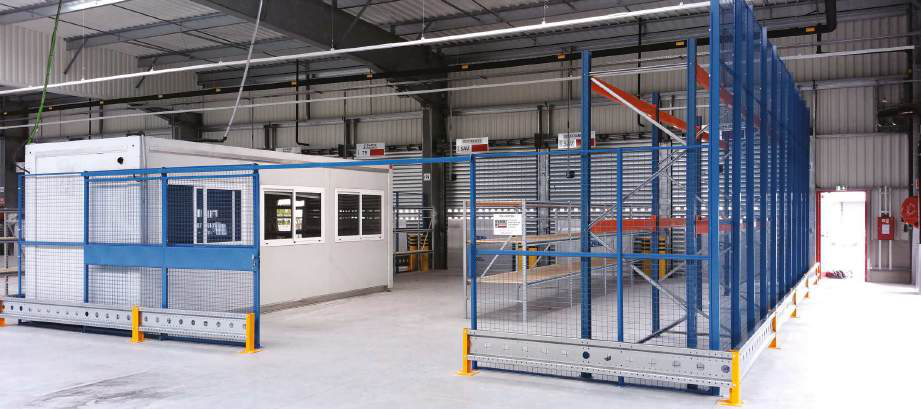

Storage Area with Multiple Units
Storage Area with Multiple Units
Incoming Goods Delimitation
Incoming Goods Delimitation

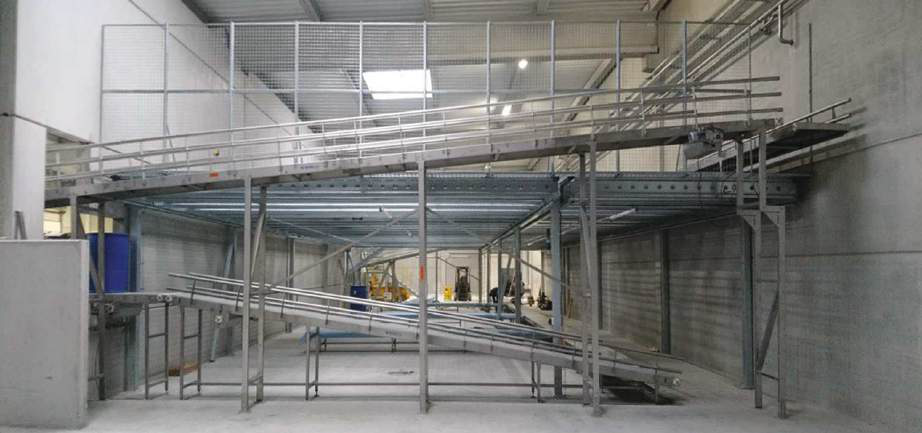

Platform Security Partition
Platform Security Partition
Storage with Double Hinged Door
Storage with Double Hinged Door
Outdoor Galvanised Partition
Outdoor Galvanised Partition

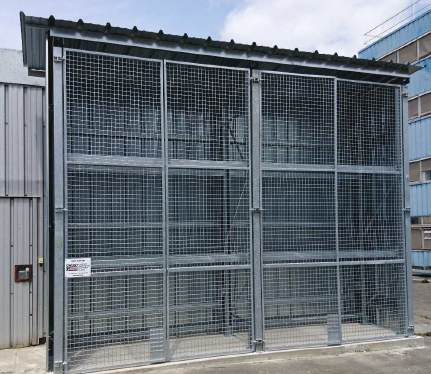

6,000 mm High Storage Area
6,000 mm High Storage Area
Your next step

Let’s check the fit for your project.

Tell us about your stored goods, space and preferred configuration. We’ll help define the next step.

Prepare your storage brief
