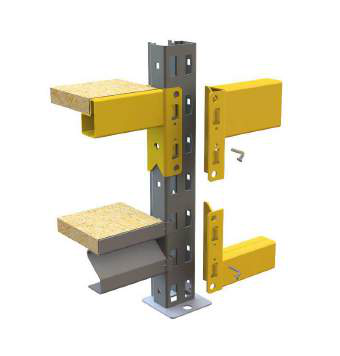

PRORACK+ Beams
Reversible beams from 1,000 to 2,700 mm length. Load up to 1,240 kg per level. 4 beam types: Rectangular, Oval, Type B, Type Z.
- Load from 150 to 1,200 kg per level
- Height up to 6,000 mm in one piece
- Tested per European standard FEM 10.2.02
- 12 depths from 400 to 1,500 mm
- 15 heights from 1,800 to 6,000 mm
- Adjustment range 50 mm
- 100% Sendzimir galvanised steel frames
All sizes and specifications shown below. Our experts will help you choose the right configuration and provide competitive pricing for your project.
Interested in PRORACK+ Beams?
Our experts will help you choose the right sizes, configurations and accessories. Get a personalised quote.
Technical Specifications
| Product Range | PRORACK+ |
| Component | Beams |
| Available Lengths | 1,000 to 2,700 mm |
| Max Load | 1,240 kg per level (evenly distributed) |
| Adjustment Range | 50 mm |
| Finish | Yellow epoxy paint RAL 1028 (except Type Z) |
| Beam Types | Rectangular (40x30, 60x30), Oval (40x20), Type B (45x30, 70x30), Type Z (72x30) |
| Thickness | 1.5 mm or 2 mm (Rectangular and Oval) |
Load Capacity (kg per shelf)
Standard
| Length | Rect 40x30 /1.5 | Rect 40x30 /2 | Rect 60x30 /1.5 | Rect 60x30 /2 | Type B 45x30 | Type B 70x30 | Type Z 72x30 | Oval 40x20 |
|---|---|---|---|---|---|---|---|---|
| 1000 mm | 520 | 690 | 940 | 1240 | 400 | 880 | — | 170 |
| 1300 mm | 400 | 520 | 720 | 950 | 300 | 660 | 620 | 120 |
| 1600 mm | 290 | 370 | 580 | 770 | — | 520 | 500 | 90 |
| 1800 mm | 220 | 330 | 520 | 680 | — | 460 | — | 70 |
| 2000 mm | 180 | 260 | 470 | 580 | — | 400 | 400 | 50 |
| 2200 mm | 150 | 200 | 410 | 530 | — | — | — | — |
| 2500 mm | — | — | — | 410 | — | — | — | — |
| 2700 mm | — | — | — | 350 | — | — | — | — |
All loads evenly distributed, in kg. Values from official technical documentation. Contact us for project-specific load calculations.

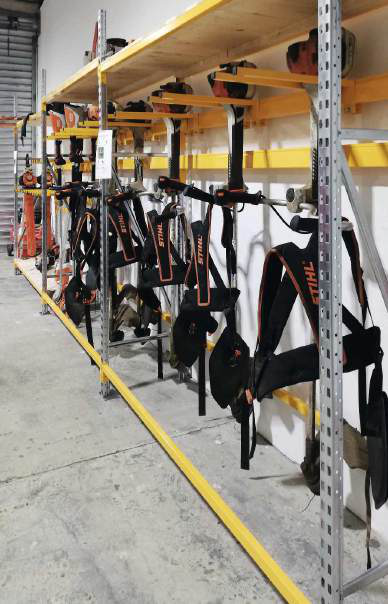

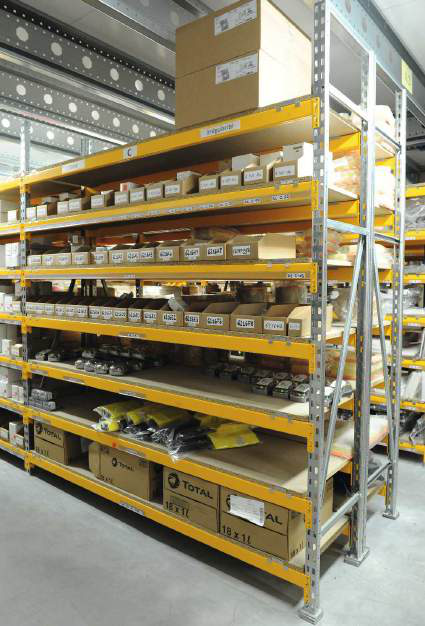

Applications
