PROPLUS LP3 Staircases & Safety
Straight and spiral staircases, certified guardrails, pallet safety gates. Main staircase 34° or secondary 45°. Tilt-up or folding pallet gates.
- Maximum span up to 10 metres
- Up to 850 kg/m2 load capacity
- EU-certified platform, Eurocode 3
- 3 flooring types: wood, grating, sheet metal
- Fully modular — add/reduce square metres
- Bolted assembly with 50 mm pitch
- Alternative to construction without extra rent
All sizes and specifications shown below. Our experts will help you choose the right configuration and provide competitive pricing for your project.
Interested in PROPLUS LP3 Staircases & Safety?
Our experts will help you choose the right sizes, configurations and accessories. Get a personalised quote.
Technical Specifications
| Product Range | PROPLUS LP3 |
| Type | Staircases & Safety Equipment |
| Main Staircase 34° | Effective width 1,000 mm, overall 1,200 mm, height 1,100–3,500 mm |
| Secondary Staircase 45° | Effective width 800 mm, overall 1,000 mm, height 1,100–3,900 mm, floor space = height − 131.5 mm |
| Spiral Staircase Ø1820 | Clear width 800 mm |
| Spiral Staircase Ø1420 | Clear width 600 mm |
| Guardrail Industrial | H 1,035 mm per NF E85-015 — storage platforms |
| Guardrail Work | H 1,115 mm per EN ISO 14122-3 — near machines/conveyors |
| Guardrail Public | H 1,075 mm per NF P01-012 — public access buildings |
| Toeboard | Metal, 100 mm height |

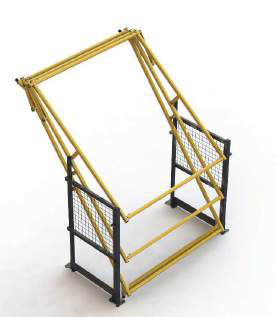

| Tilt-Up Gate Widths | 1,700, 2,100, 2,500, 3,100 mm |

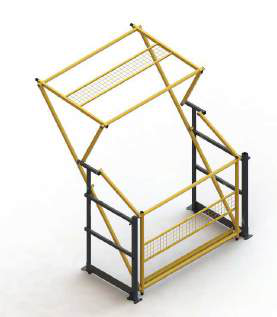

| Folding Gate Widths | 1,700, 2,100, 2,500, 3,100 mm |
| Swing Gate | Overall 1,700 mm, effective 1,395 mm, H 1,035 mm |
| Sliding Gate | Overall 3,000 mm, effective 1,600 mm, H 1,030 mm |
Load Capacity (kg per shelf)
Standard
| Type | Max Load Width | Max Load Depth | Load Height T1/T2/T3 | Min Ceiling T1/T2/T3 |
|---|---|---|---|---|
| Tilt-up | Width − 500 | 1,450 | 1650 / 2000 / 2350 | 2100 / 2435 / 2619 |
| Folding | Width − 500 | 1,450 | 1790 / 2000 / 2350 | 2100 / 2200 / 2533 |
All loads evenly distributed, in kg. Values from official technical documentation. Contact us for project-specific load calculations.
Accessories & Options
Applications
