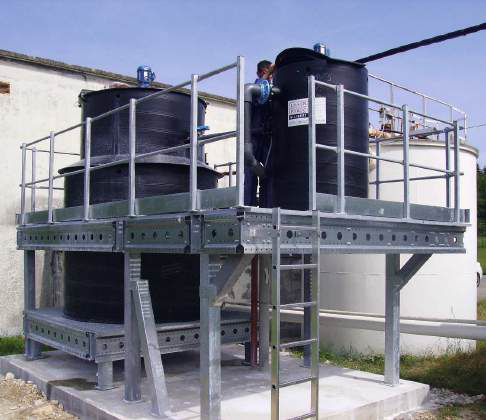

PROPLUS LP3 Storage Platform
Complete mezzanine/platform system with load-bearing columns, primary and secondary beams, and flooring. Bolted assembly. Change layout, add square metres, reposition columns.
- Maximum span up to 10 metres
- Up to 850 kg/m2 load capacity
- EU-certified platform, Eurocode 3
- 3 flooring types: wood, grating, sheet metal
- Fully modular — add/reduce square metres
- Bolted assembly with 50 mm pitch
- Alternative to construction without extra rent
Published capacities are configuration dependent. The final design, loads, dimensions, accessories and price must be confirmed for your installation.
Technical information
Use these catalogue details as a starting point for your discussion with our storage team.
Read the complete brochure| Product Range | PROPLUS LP3 |
|---|---|
| Type | Storage Platform / Mezzanine |
| Max Span | 10,000 mm |
| Max Load | 850 kg/m2 (higher on request) |
| Standard | Eurocode 3, EU-certified |
| Assembly | Bolted, 50 mm pitch perforation |

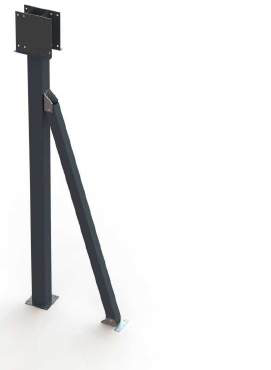

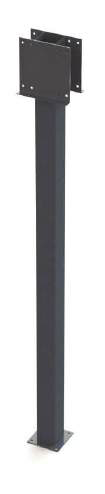

| Column Sizes | 100x2, 100x3, 120x3, 120x4 mm |
| Beam Heights | 200, 300, 400 mm |
| Flooring | Wood (19/25/38 mm), Steel Grating, Sheet Metal |
| Colour | RAL 7016 |
| Column Bracket PB 200 | Width 290, Height 203, Thickness 4 mm, 2x4 bolts |
| Column Bracket PB 300 | Width 290, Height 300, Thickness 4 mm, 2x4 bolts |
| Column Bracket PB 400 | Width 290, Height 402, Thickness 5 mm, 2x4 bolts |
| Footplate | 200 x 200 mm with three-point floor anchoring |
Accessories & Options
Applications
More in PROPLUS LP3

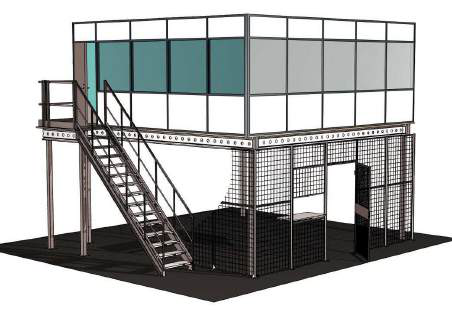

PROPLUS LP3 Office Platform
Mezzanine platforms configured for office spaces, conference rooms and administrative areas within industrial buildings. Creates two-storey office environments without permanent construction. Combines with MODUL+ partitioning for complete office solutions.
Details & specifications
PROPLUS LP3 Order Picking Platform
Tailor-made mezzanine platforms optimised for order picking operations. Multi-level configurations double or triple floor space for efficient pick-pack-ship workflows. Available with integrated conveyors, special colours and custom layouts.
Details & specifications
PROPLUS LP3 Pallet Safety Gates
Tilt-up and folding pallet safety gates for safe loading and unloading on mezzanine platforms. Prevents falling objects and maintains worker safety when handling palletised goods at height. Two gate types available for regular and intensive use.
Details & specificationsPROPLUS LP3 Staircases & Safety
Straight and spiral staircases, certified guardrails, pallet safety gates. Main staircase 34° or secondary 45°. Tilt-up or folding pallet gates.
Details & specificationsLet’s check the fit for your project.
Tell us about your stored goods, space and preferred configuration. We’ll help define the next step.
