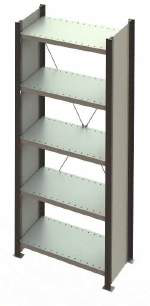

PROSPACE+ Metal Sheet Shelf
Cold-rolled steel shelves with 12-fold edge box profiles for high resistance. Perforated every 45 mm for accessories. Edge accepts adhesive or magnetic labels.
- Load capacity up to 2,100 kg per pair of uprights
- Height up to 5,000 mm in one piece
- Adjustment pitch 40 mm
- Depth up to 1,000 mm
- Load up to 275 kg per shelf (evenly distributed)
- Clip-in assembly, no tools required
- Guaranteed European origin
Published capacities are configuration dependent. The final design, loads, dimensions, accessories and price must be confirmed for your installation.
Technical information
Use these catalogue details as a starting point for your discussion with our storage team.
Read the complete brochure| Product Range | PROSPACE+ |
|---|---|
| Shelf Type | Metal Sheet (cold-rolled steel) |
| Available Lengths | 970, 1240 mm |
| Available Depths | 300, 350, 400, 500, 600, 700, 800 mm |
| Profile | 12-fold edge box profiles |
| Perforation | Every 45 mm for accessories |
| Labelling | Edge accepts adhesive or magnetic labels |
| Attachment | 4 shelf clips per shelf |
| Standard Finish | Epoxy paint RAL 7035 |
| Optional Finish | Galvanised |
| Configurations | 14 standard shelf formats |
| Frame Versions | Open Frame (bracings) or Closed Frame (lateral metal sheets) |
Accessories & Options
Applications
More in PROSPACE+
PROSPACE+ Archive Shelf (Semi-Tôlé)
Semi-sheet metal archive shelving with enclosed side panels and cross-braced backs. 7 shelf levels at 2,200 mm height with 350 mm depth, optimised for archive box storage. The enclosed design prevents items falling from the sides — ideal for office and administrative archive rooms.
Details & specifications
PROSPACE+ Archive Shelf
Tubular shelving configured for archive and document storage. 7 shelf levels at 2,200 mm height with 350 mm depth optimised for standard archive boxes. Available in single-access (350 mm) or double-access (700 mm) depth. Clean aesthetic with no front-facing perforations, suitable for offices, hospitals and administrative environments.
Details & specificationsPROSPACE+ High-Rise Storage
High-rise PROSPACE+ shelving configurations reaching up to 5 metres in a single upright. Designed for applications where vertical space utilisation is critical — archives, warehouses and distribution centres. Multi-level access with walkways and staircases.
Details & specifications
PROSPACE+ Semi-Tôlé Shelf
Hybrid shelving combining a tubular frame structure with galvanised sheet metal side panels. Offers the structural versatility of tubular construction with enclosed aesthetics and item retention of sheet metal sides. Cross-braced back for rigidity. Ideal for retail, workshop and office environments.
Details & specifications
PROSPACE+ Tubular Shelf
Tubular shelves with front beams, side beams and inner tubes. Directly attached to uprights. Available with hardboard, galvanised sheet or mesh cover.
Details & specifications
PROSPACE+ Workshop & Store Room
Complete workshop and store room storage solutions using PROSPACE+ modular shelving. Purpose-configured for tools, parts, supplies and equipment in workshops, maintenance areas and back-of-store rooms. Combines tubular and metal sheet shelves for mixed-load storage.
