Frames

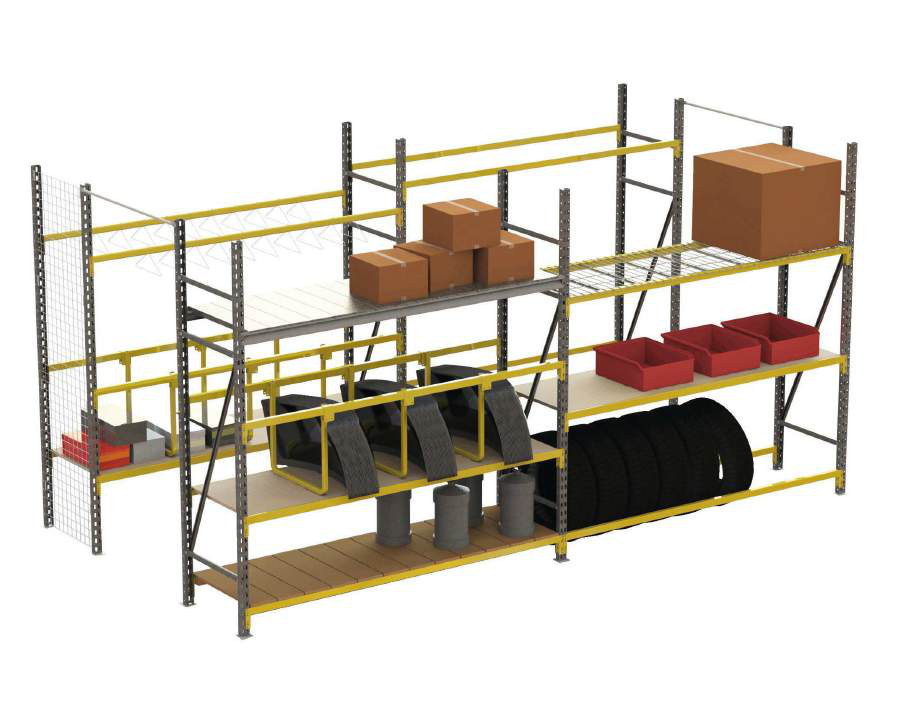

PRORACK+ Frames
Cold-rolled 6-fold uprights with horizontal and diagonal bracing. Reversible uprights. Available dismantled, bolted or welded. Type 1.5 (up to 3.5 t) or Type 2 (up to 4.8 t).
- Load from 150 to 1,200 kg per level
- Height up to 6,000 mm in one piece
- Tested per European standard FEM 10.2.02
- 12 depths from 400 to 1,500 mm
- 15 heights from 1,800 to 6,000 mm
- Adjustment range 50 mm
- 100% Sendzimir galvanised steel frames
Starting from
206 € excl. tax
Starting prices shown for reference. Final pricing depends on configuration, quantity and delivery location. Contact us for a detailed quote.
Contact our sales team for pricing and project consultation.
All sizes and specifications shown below. Our experts will help you choose the right configuration and provide competitive pricing for your project.
All sizes and specifications shown below. Our experts will help you choose the right configuration and provide competitive pricing for your project.
Available sizes
Finishes
Interested in PRORACK+ Frames?
Our experts will help you choose the right sizes, configurations and accessories. Get a personalised quote.
Technical Specifications
| Product Range | PRORACK+ |
| Component | Frames (uprights + bracing) |
| Upright Type | Cold-rolled 6-fold |
| Frame Type 1.5 | Up to 3,500 kg per frame (1.5 mm thickness) |
| Frame Type 2 | Up to 4,800 kg per frame (2 mm thickness) |
| Available Depths | 400 to 1,500 mm (100 mm increments) |
| Available Heights | 1,800 to 6,000 mm (300 mm increments) |
| Versions | Dismantled, Bolted, Welded |
| Finish | 100% Sendzimir galvanised steel |
Accessories & Options
Base PlateFor ground anchoring of frames.
Levelling PlateAdjustable plate for uneven floors.
Tie BarMaintains regular spacing between two rows of frames.
Upright JunctionTo raise an existing unit by connecting additional frame height.
Safety PinHolds beams securely in position on the frame.
Applications

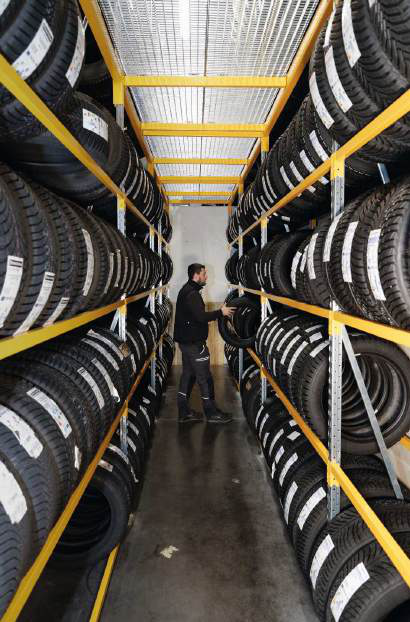

Tyre Storage at Heights

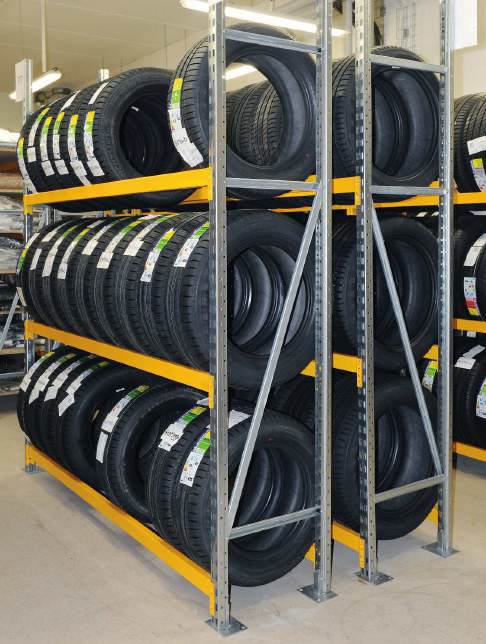

Platform with Walkway
Workshop Storage

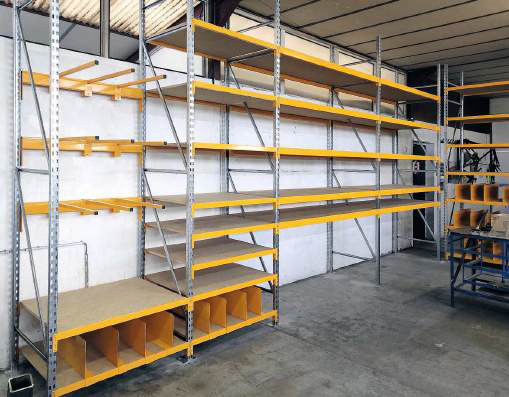

Bicycle Assembly Workshop

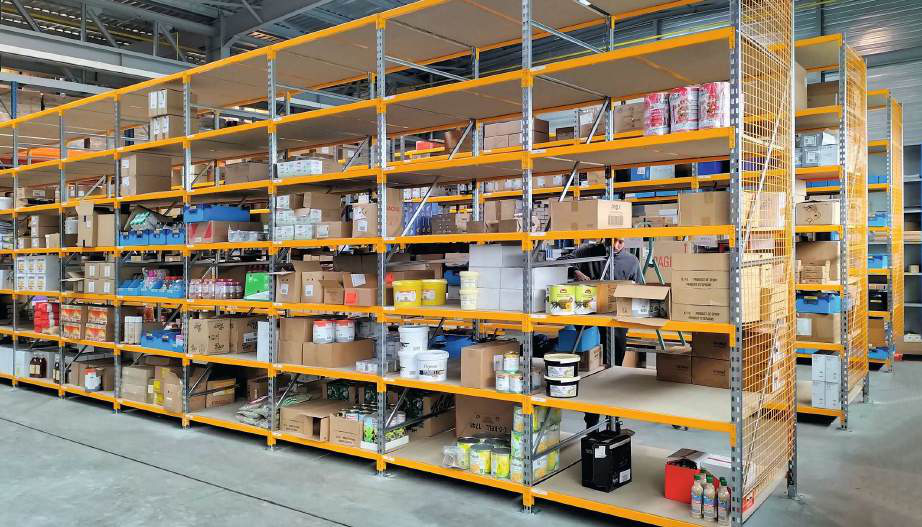

Picking Zone on Mezzanine
Platform with Walkways
